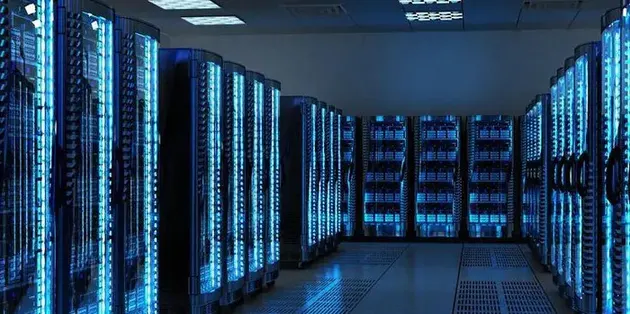

The image below is an illustrative view of a data hall with server racks and a perforated access floor. It shows the density of equipment and services that an interior system must accommodate, but it does not document a Wonclean project or prove a specific capacity, redundancy level or operating condition.

Start With the IT Load and Cooling Architecture

Interior components should follow the engineering strategy rather than define it. Before selecting any Data center panel, the project team should confirm rack power density, growth allowance, air or liquid cooling approach, supply and return paths, cable distribution, fire strategy and maintenance zones. These inputs determine which parts of the room must remain open, sealed, removable or structurally supported.

Current ASHRAE data center resources address facility design, environmental guidance, cooling technologies and energy efficiency. The published ANSI/ASHRAE Standard 90.4-2025 establishes minimum energy-efficiency requirements for data centers. Neither resource turns one ceiling or partition product into a complete compliance solution; the full mechanical and electrical design still has to be coordinated and verified.

Treat the Ceiling as a Service and Load Coordination Zone

A data center structural ceiling may need to support or coordinate cable trays, busways, lighting, fire detection, suppression piping, containment frames and maintenance access. The primary support grid and its connections should be designed from verified loads and approved building structure. Decorative finish panels cannot be assumed to carry suspended services.

Data center ceiling tiles should provide the required access without creating loose components above sensitive equipment. Tile size, edge detail and removal sequence should match the service zones. Where a server room ceiling system includes sealed panels, every penetration needs a defined trim, support and closure detail so later additions do not leave uncontrolled openings.

Separate Security Zones Without Blocking the Cooling Path

Custom data center partitions can divide customer cages, equipment rooms, battery-support areas, corridors or phased expansion zones. Their layout must be checked against supply and return airflow, sprinkler coverage, detection, egress, lighting and door clearances. A partition that looks correct on an architectural plan may create a thermal bypass or an inaccessible service pocket when installed around live racks.

Aisle containment has a different purpose from general room partitions. It manages the separation of hot and cold air streams close to the racks. Its roof panels, doors and end-of-row details should be coordinated with overhead services and the operating sequence. Emergency response, fire protection and rack replacement routes remain part of that review.

Control Openings Around Racks, Cables and Floor Panels

When a raised floor is used as a supply-air plenum, misplaced perforated tiles and unsealed cable cutouts can allow conditioned air to bypass the rack inlets. Floor layout should therefore be coordinated with rack rows, power whips, network cabling, leak detection and access routes. The goal is to deliver air where the equipment requires it while keeping panels removable for maintenance.

Heavy racks and rolling loads also affect panel selection and pedestal layout. Load capacity, grounding, surface finish and underfloor clearances should be specified by the responsible disciplines. Interior wall bases and door thresholds must meet the finished floor cleanly without trapping debris or preventing panel removal.

Interfaces to Resolve Before Fabrication

Keep Detection, Suppression and Access Visible in the Design

Data center interiors must be coordinated with the fire and life-safety design approved for the project. NFPA 75 addresses fire protection for information technology equipment and includes provisions for modular data centers. The applicable edition, local code and authority requirements should be confirmed by the project team.

Maintenance access should be drawn, not assumed. Technicians need safe routes to dampers, detectors, cable connections and equipment above the ceiling or below the floor. Removable panels require lifting clearance and a place to stage them. Labels and as-built records should identify which systems are behind each access zone.

Verify the Built Room Under Representative Load

Inspection should confirm panel alignment, support connections, penetration closures, door operation and service access. Airflow testing should then evaluate the actual rack layout and operating modes, including expected failure or maintenance conditions. Temperature sensors and facility monitoring can show where bypass or recirculation develops as loads change.

No photograph can establish a data center's reliability tier, thermal envelope, fire compliance or energy performance. Those claims require project records, approved calculations, commissioning results and ongoing operating data.

Avoid These Data Center Interior Coordination Gaps

• Suspending services from finish panels: define a verified structural load path for every overhead system.
• Installing partitions after airflow design: review every new boundary for bypass, recirculation and access effects.
• Leaving cable cutouts open: specify closures that suit cable changes and the underfloor airflow strategy.
• Blocking panel removal: coordinate lights, piping and containment so service panels remain usable.
• Commissioning an empty layout only: verify representative rack arrangements and operational modes.
