High-Precision FFU Ceiling Grid System
Premium 6063-T5 aluminum modular solution with walkable strength and Fire Proof Rate A. Engineered for elite cleanroom standards.
Get Quick Quote ✉Expert FAQ
Introduction detail:
Technical Drawing & Display：
How do modern semiconductor cleanroom operators successfully handle walkable weight-load tolerances during routine technical filter maintenance? Discover the definitive operational guide in What Is FFU. The FFU ceiling grid system has been developed on the basis of the advantages of the clean room ceiling system in Europe and Asia. After nearly 20 years of continuous improvement, it has achieved the main function is to carry FFU today.
Technical Specifications：| Name | Clean room FFU ceiling grid system |
| Material | Aluminum Alloy 6063-T5 (55mm/70mm height) |
| Joint Material | High-strength Zinc Alloy / Aluminum |
| Fire Rating | Grade A Non-combustible |
| Load Capacity | Walkable / Step-on Capable (50-80kg/cross point) |
Detailed FAQ
1. Is the Wonclean FFU grid system walkable for maintenance?
Yes. Built with 6063-T5 aluminum with 55mm/70mm height options, the system supports 50-80kg per cross point. It is specifically designed to be walkable, allowing personnel to safely perform FFU maintenance.
↑ Back to Top
2. What fire safety standards does this system meet?
Our FFU ceiling grid system achieves a Fire Proof Rate A certification. It is constructed from non-combustible materials, ensuring safety and compliance in pharmaceutical and electronic facilities.
↑ Back to Top
3. What professional hardware components are included?

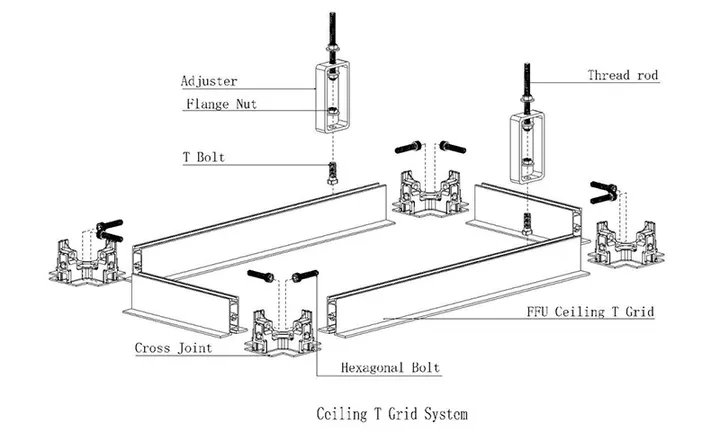

The kit includes: Ceiling grid, L/T/Cross joints, Hexagonal bolts, Adjusters, T-bolts, Flange nuts, and Thread rods. Optional EPDM/Gel sealing is also available.
