Product Details
What Is an Aluminum Honeycomb Cleanroom Panel?
An aluminum honeycomb cleanroom panel uses two metal facings around a hexagonal aluminum core. The cell geometry delivers high rigidity at low weight, with a flat, anti-static and wipe-clean surface for walls and accessible ceilings.
The aluminum core is lighter and flatter over long spans than mineral-filled panels, though it provides less thermal and acoustic insulation. Choose rock wool when insulation leads, and honeycomb when weight, flatness or ceiling strength matters most.
Part of Wonclean's cleanroom sandwich panel family, the honeycomb panel integrates with FFU ceiling grid systems and matching cleanroom doors and windows for a fully sealed, flush cleanroom wall system.

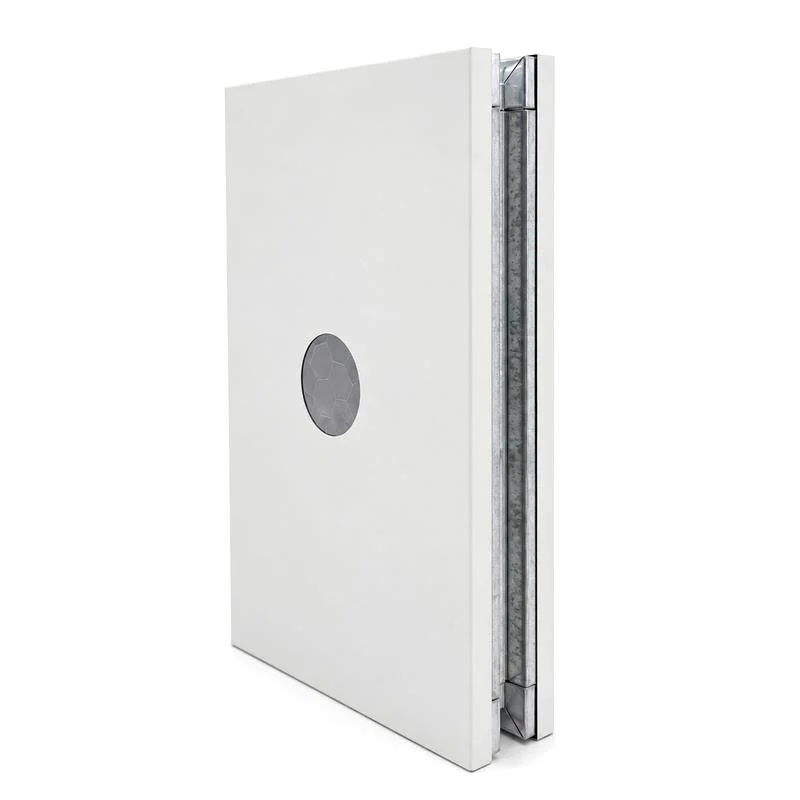

Panel Anatomy — Layer by Layer
Core Features
Technical Specifications
| Panel thickness | 25 / 50 mm standard; other thicknesses fully customizable |
| Effective width | 1150 mm standard (1180 mm overall); 980 mm optional |
| Panel length | Cut-to-size, typically up to 6000 mm per panel; longer on request |
| Facing | Aluminum 0.5–1.0 mm; color-steel, HPL or stainless steel options |
| Core | Hexagonal aluminum honeycomb; cell size 5–8 mm, foil 0.04–0.06 mm |
| Fire rating | A-grade non-combustible (all-metal build) |
| Weight | Lightweight ≈ 8–12 kg/m² depending on facing & thickness |
| Flatness tolerance | ≤ 2 mm / 2 m — exceptionally flat surface |
| Joint system | Aluminum H / C connectors, tongue-and-groove or concealed framing |
| Standards / lead time | EN 13501-1 · ASTM E84 · BS 476 · ISO 9001 · CE · China / Shanghai · ~10–25 days |
Standard configurations shown; all dimensions, facing, honeycomb cell and certificates are tailored per project — request the full datasheet & test reports.
Honeycomb vs Mineral-Core Panels
| Feature | Aluminum Honeycomb | Rock Wool / MgO Core |
|---|---|---|
| Weight | Very light (≈ 8–12 kg/m²) | Heavier mineral fill |
| Flatness / rigidity | Exceptional, sag-free | Good, reinforced |
| Thermal / acoustic | Lower (air-filled core) | Excellent insulation |
| Best use | FFU & walkable ceilings, flush walls | Fire/insulated walls — see rock wool |
Where Aluminum Honeycomb Panels Are Used
From Spec to Site — 4 Steps
Expert FAQ on Aluminum Honeycomb Panels
Why pick aluminum honeycomb over a rock wool panel?
Honeycomb suits lightweight, flat walls and accessible ceilings. Rock wool provides stronger thermal and acoustic insulation.
Can it be used as a walkable ceiling?
Yes. With suitable framing, honeycomb panels can carry maintenance access loads. Share the span and load for sizing.
What is the fire rating, and can you supply certificates?
The all-metal build is A-grade non-combustible, with third-party fire reports and certifications available.
How flat is the panel, and does it stay flat in transit?
Honeycomb panels target ≤ 2 mm/2 m flatness and ship film-wrapped with edge protection and plywood crating.
Which facing and finish options are available?
Aluminum, color-steel, HPL and stainless-steel facings are available in RAL or custom colors.
What are the lead time and minimum order?
Typical lead time is 10–15 days for samples or small orders and 20–25 days for a full container, subject to specification.
Ready to Spec Your Aluminum Honeycomb Panels?
Send thickness, facing, finish, wall or ceiling use, cleanroom class and quantity for a schedule, reports and quote. Typical reply within 24 hours.
