What Is a Cleanroom Sandwich Panel?
A cleanroom sandwich panel is a composite board made of two facing sheets bonded to a functional core. It delivers flame retardancy, sound insulation and environmental protection, and is engineered so the finished wall or ceiling has no dust accumulation and no dust generation. The surface enhances antistatic performance and resists corrosion, meeting the demands of pharmaceutical, electronics, food and healthcare environments. Panels install into a flush, gap-free, easy-to-disinfect surface and integrate directly with our cleanroom ceiling system and doors & windows.

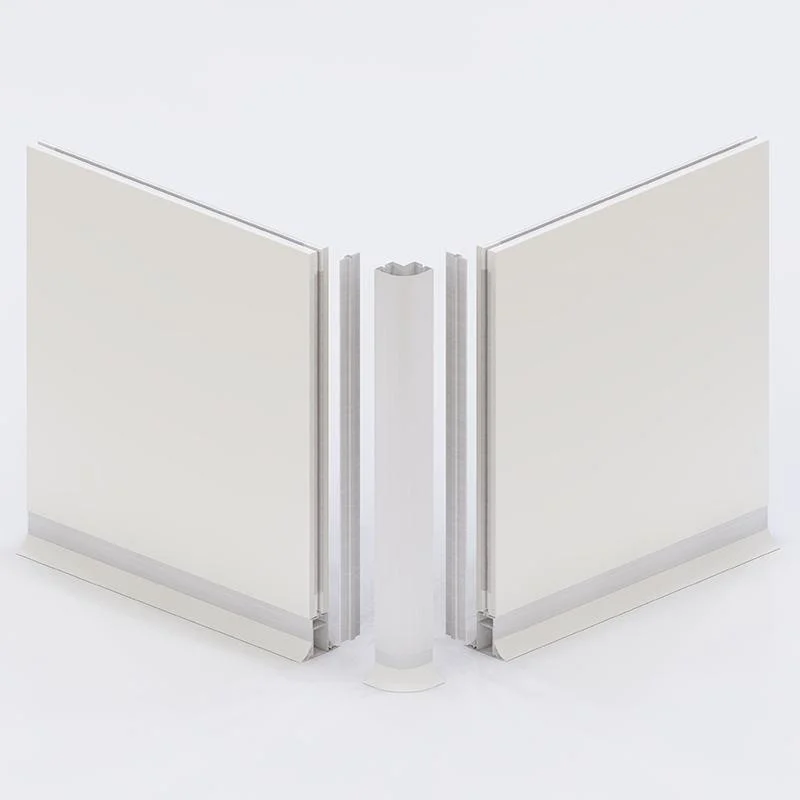

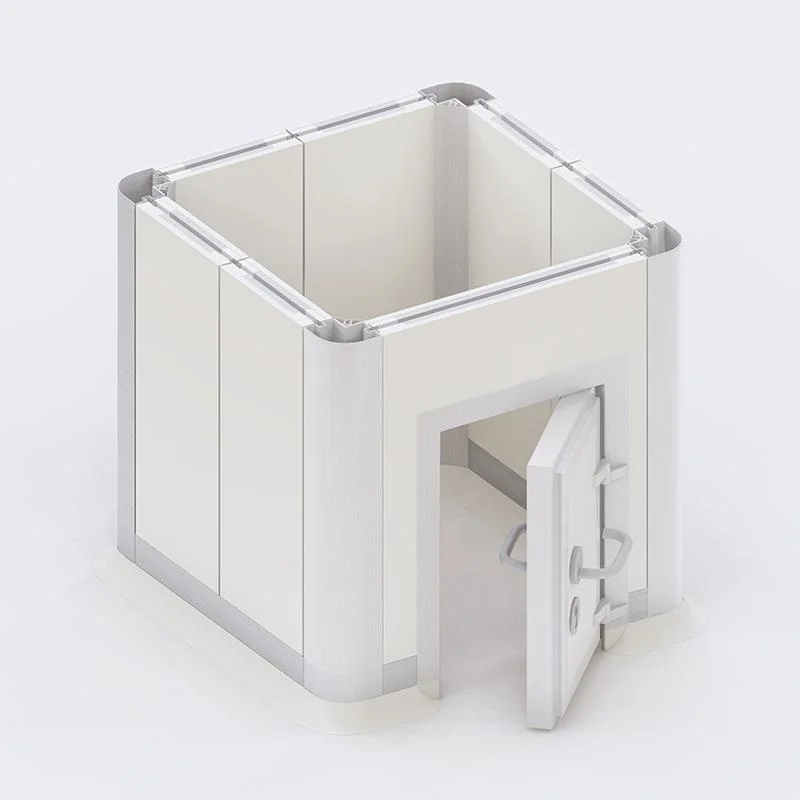

Panel Anatomy & Joint Detail
Choose Your Core Material
| Core | Fire performance | Key strength | Typical use |
|---|---|---|---|

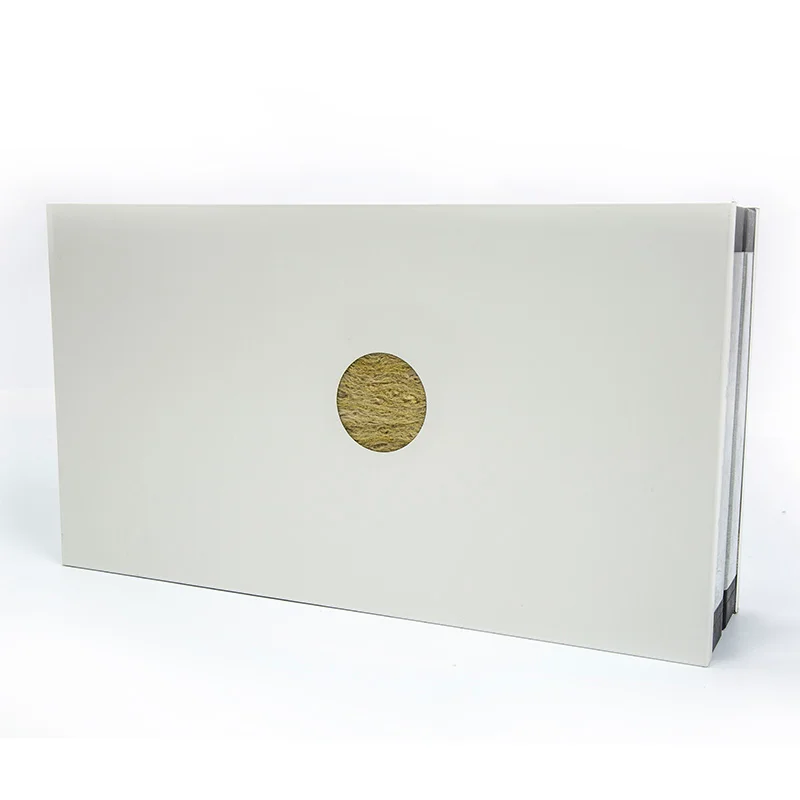

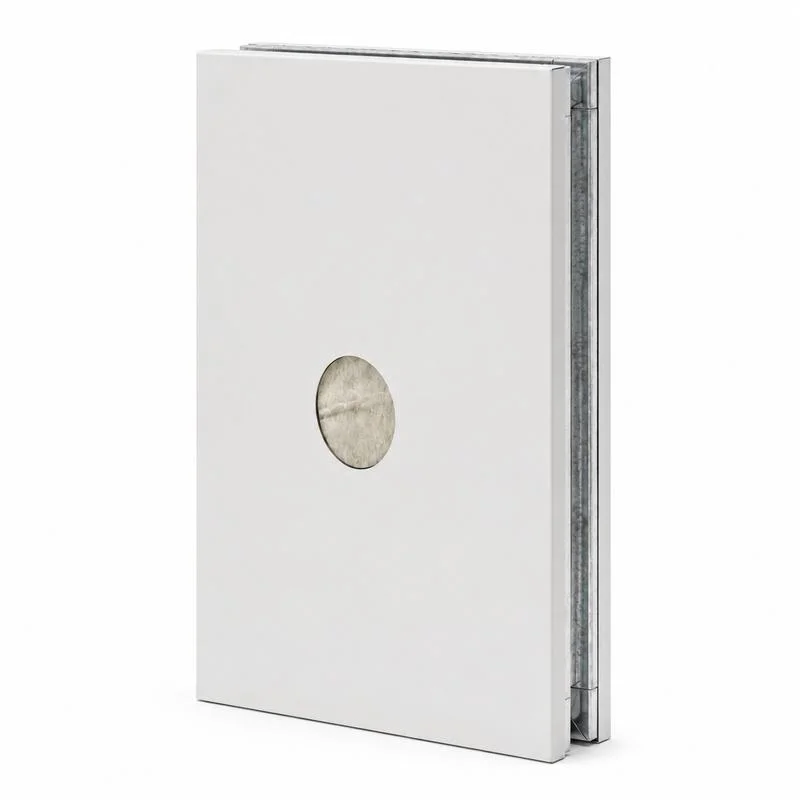

| Rock wool | Non-combustible | Fire resistance & sound insulation | Electronics & pharma plants |

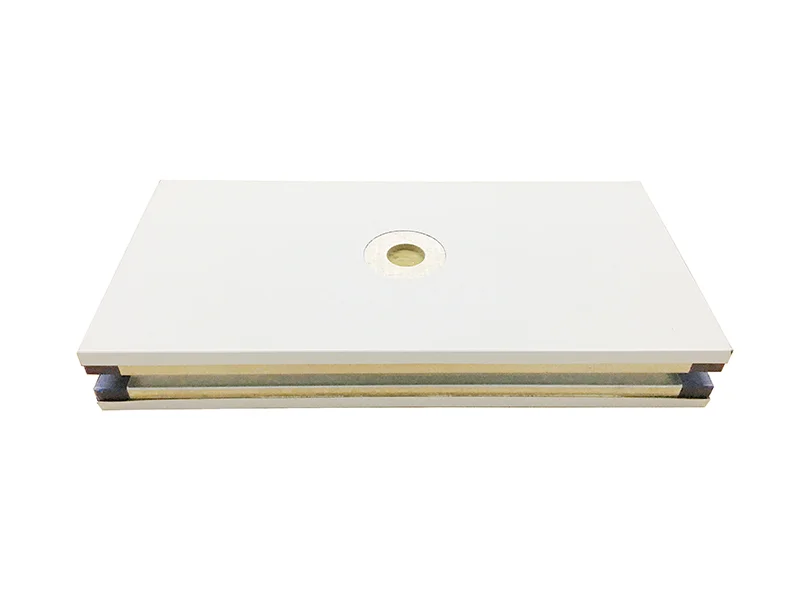

| MGO + rock wool | Non-combustible | Moisture-proof, high strength | High-humidity & fire-safe areas |

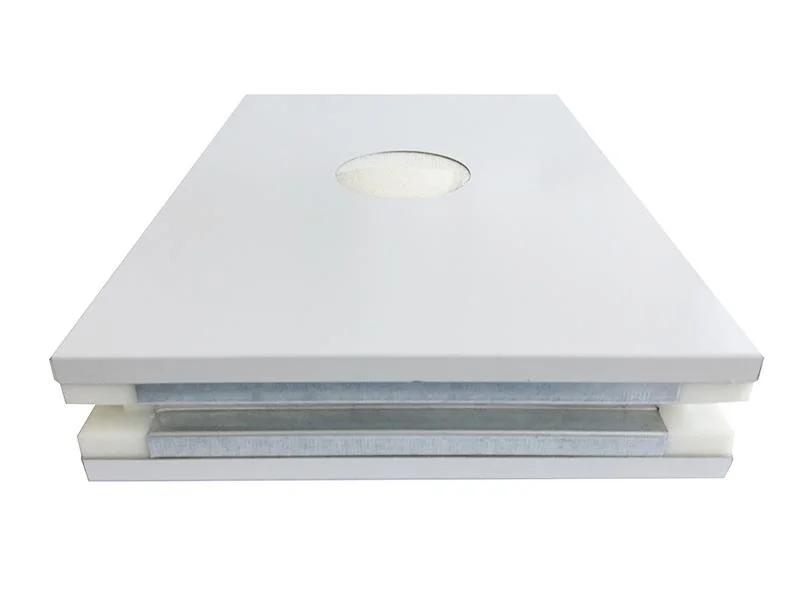

| PU / PIR | Self-extinguishing (PIR > PU) | Superior insulation, low density | Cold storage & standard cleanrooms |

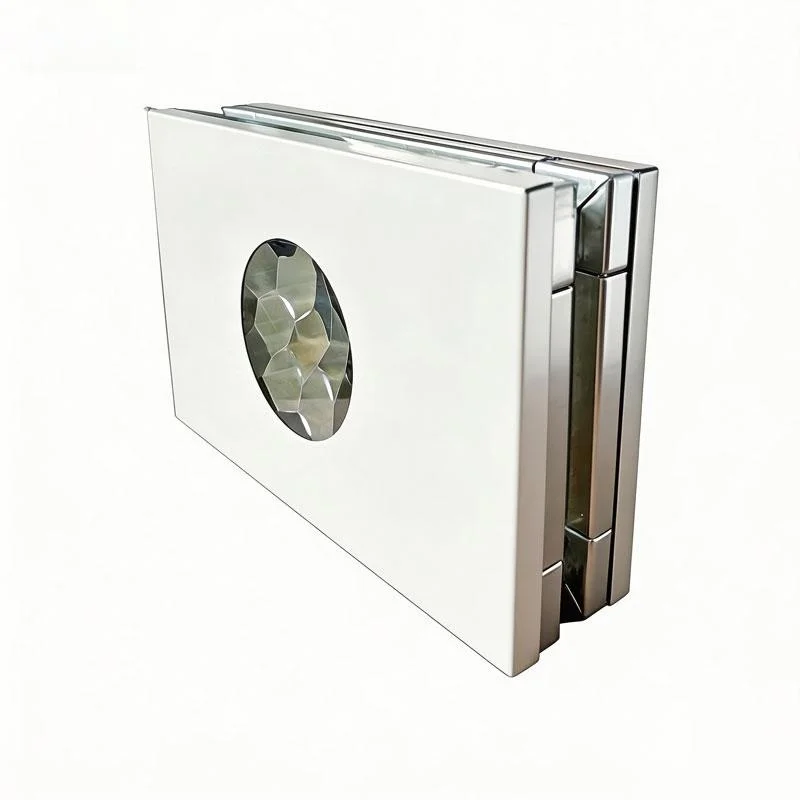

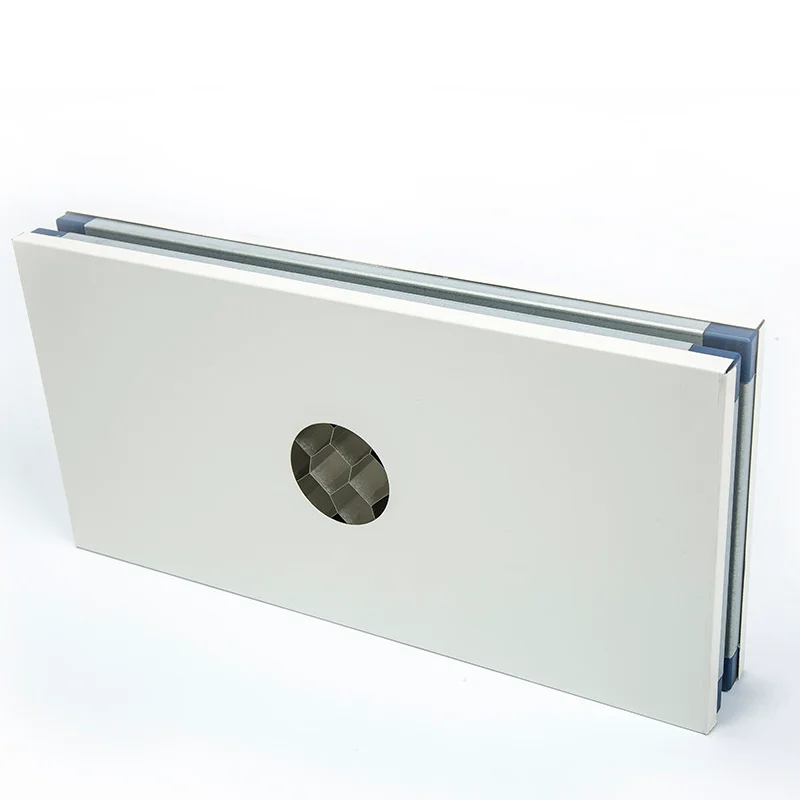

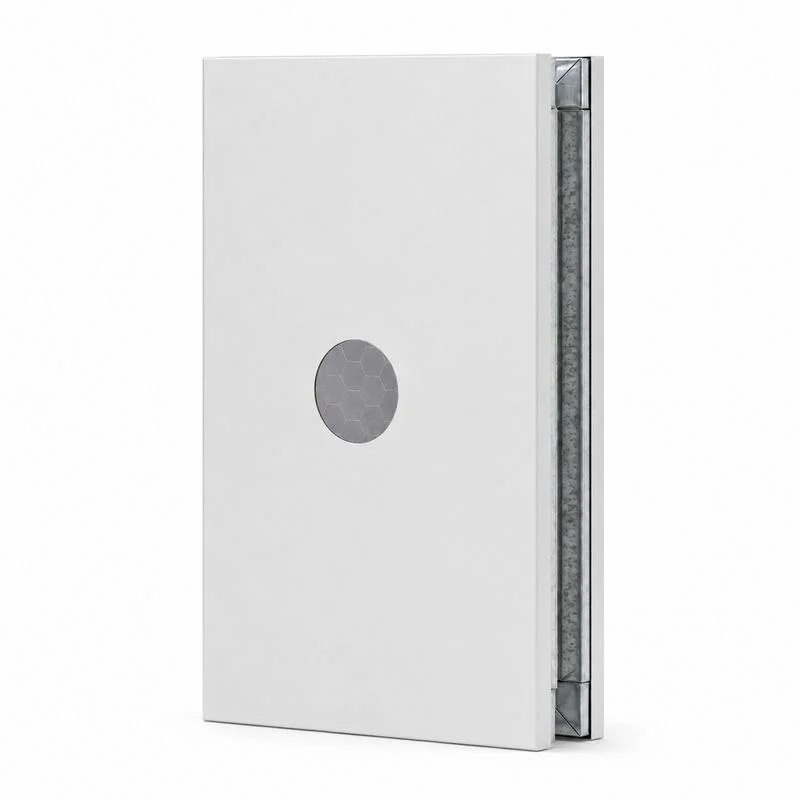

| Aluminum honeycomb | Non-flammable | Extreme flatness, high rigidity-to-weight | Ceilings & large-span partitions |
| Paper honeycomb | Flame-retardant facing | Lightweight, economical | Infill panels & doors |

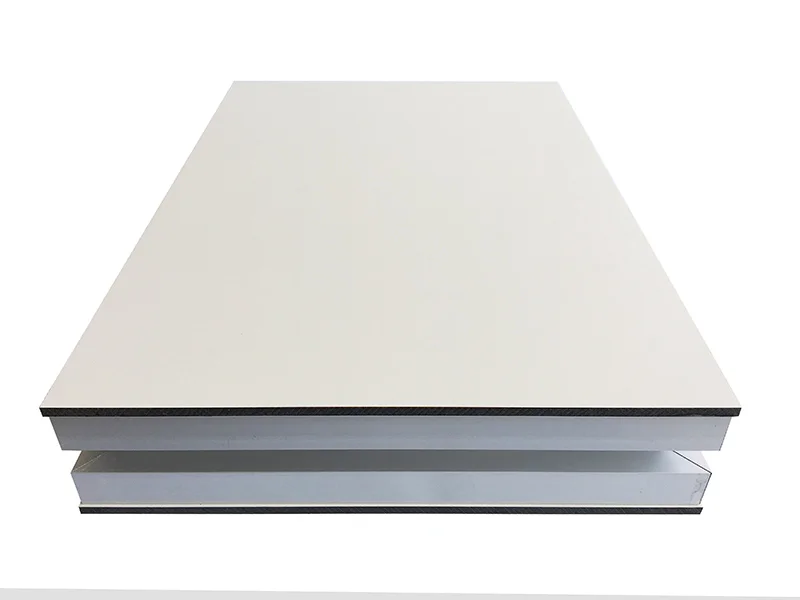

| HPL | Fire resistant | Chemical & impact resistance, decorative | Medical & lab wall surfaces |
Also available: EPS cleanroom panel · HPL sandwich panel · Medical cleanroom panel. Panel thickness, width and facing are made to order — tell us your fire and hygiene requirements and we recommend the right build.
Core Materials in Detail
Surface, Joint & Size Options
| Facing options | Metal (pre-coated / galvanized steel, stainless steel, aluminum) or 4 mm HPL |
| Surface properties | Antistatic, dust-free, corrosion-resistant, flush & gap-free |
| Thickness / width / length | Customizable to project requirements |
| Jointing | Tongue-and-groove / cam-lock — flush, airtight wall |
| Fire performance | Rock wool & MGO non-combustible; rock wool partition tested to GB/T 9978 |
Where Our Panels Are Used
Technical Insights & FAQ
Which core should I choose for strict fire requirements?
Rock wool and MGO + rock wool are non-combustible and best for strict fire codes. Our metal-faced rock wool partition has passed GB/T 9978 fire-resistance type testing at an accredited national centre — the report is available on request.
How do I choose between PU and PIR panels?
Both give excellent insulation at low density. PIR is an upgraded PU with superior flame retardancy and better temperature resistance, making it the safer option for high-standard pharmaceutical and cold-room projects.
Can these panels handle high-humidity environments?
Yes. The MGO + rock wool (glass-magnesium) and HPL panels are moisture-proof and resist warping or mould, making them well suited to humid cleanroom conditions.
Why is aluminum honeycomb used for large-span ceilings?
Its hexagonal structure gives the highest rigidity-to-weight ratio, so the ceiling stays perfectly flat and can safely be walked on during maintenance and inspection.
How do the panels join, and are they airtight and antistatic?
Panels connect with a tongue-and-groove / cam-lock joint to form a flush, airtight, gap-free wall with no dust accumulation. Surfaces are corrosion-resistant and can enhance antistatic performance.
What sizes and facings are available?
Thickness, width and length are made to order. Facings include pre-coated or galvanized steel, stainless steel, aluminum, or 4 mm HPL in multiple colors. Send us your specification and we confirm the data sheet before production.
